WOUND COILS

Sinotech can ensure excellent quality wound coils from China and is very price competitive. Sinotech's factory is QS-9000 and ISO certified. Sinotech is dedicated to managing your project on-site in China and delivering parts to you at lower prices but the same quality, service and terms as a domestic supplier.

Along with its intelligent manufacturing processes, Sinotech's factory provides low cost solutions for winding with a variety of customer requirements.

Sinotech is truly one of the few remaining totally integrated suppliers of specialty custom windings in the electromechanical motor and gyro industries. All laminations are stacked using critically designed stacking tools and fixtures. This is one of our specialties and the heart of our business.

Our superior machining capabilities enable us to commonly manufacture to .0003" tolerances total on O.D.'s and I.D.'s. If the application demands, closer tolerances can be obtained. Sinotech builds custom bobbin windings which employ unique transfer molding technology for high dielectric requirements up to 1,500 volts.

Method of Winding

Skein Wound - Hand Inserted
Machine Wound - Internal & External Tooth
Fractional Insertion
Symmetrical Insertion
Wave Insertion
Lap Winding
Concentric Winding

Types of Magnet Wire / Insulation

Copper
Aluminum
Alloys
Round & Shaped
Solderable
Pyre ML
Polyurethane
Polyester-Imide
Polyester-Amide-Imide
Polyimide

Related Capabilities

Vacuum Impregnation
Potting
Transfer Molding
In-house Mold Making
Electrostatic Fluidizing
Grinding
Honing
CNC Machining

Coil winding Gallery

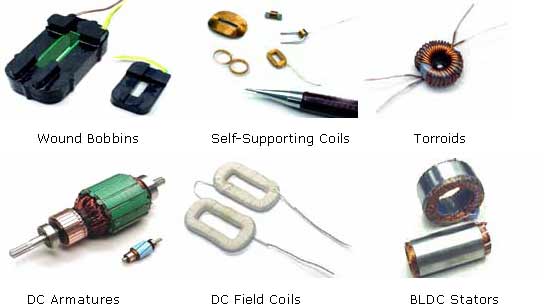

Set 1:

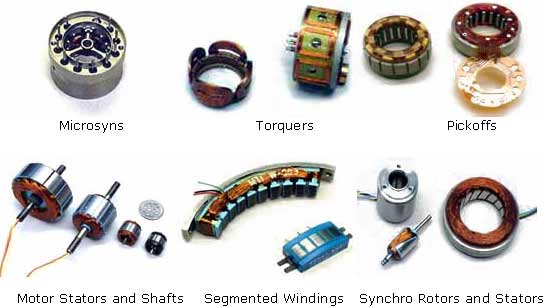

Set 2:
