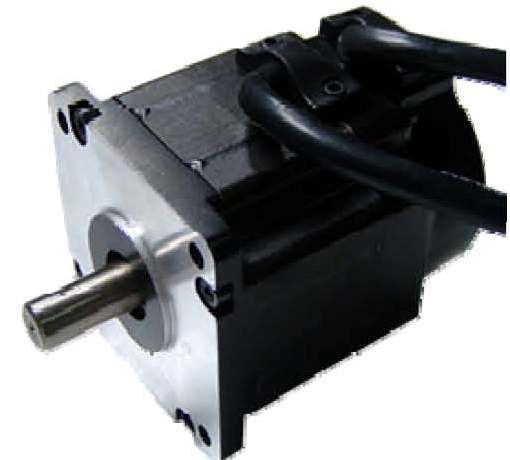

940-1250 watt 110mm
Brushless DC Motors
Long Life - High Reliability
Compact Size
High Power Density
Ball Bearing
Three Phase & 8 Poles
CW & CCW
Speed Control
| Specifications |
| Model | Rated Voltage (V) | Rated Speed (RPM) |
No Load
Speed (RPM) |
Rated Current (A) | No Load Current (A) |
Rated Torque (g-cm) | Length (mm) |
Power (W) |
Weight (g) |
| BY110BL310-940 | 310 | 3000 | 4000 | 4.33 | 3 | 115 | 940 | 4500 | |
| BY110BL310-1250 | 310 | 2000 | 2700 | 5.76 | 6 | 175 | 1250 | 7000 |
| Dimensions |
Motors described above are typical and can be customized upon request.
